Convert Netapp body.7z to old style ASUP for ConfigAdvisor offline

by jk-47 on June 16, 2015 in NetApp

I made a little script last year to help me with a customer issue, and I had forgotten about it until I ran into the same problem.

The script converts the extracted TXT and XML files from the autosupport mail body.7z into the old format for use with Config Advisor.

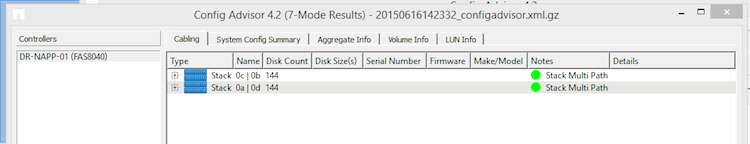

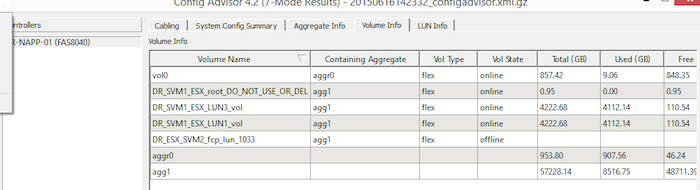

But wait, Config Advisor doesn’t handle Cluster Mode systems with offline file imports. EXACTLY! It’s annoying, but if you just want to do a check on cabling or disk firmware versions, or see a config when a customer sends you an autosupport email with a body.7z in it, this will help you out!

If you have never heard of Config Advisor, it is a handy tool which you can have scan your Netapps to check if there are any cabling, disk, or software version issues. It’s not the end all be all, but for a super duper quick scan, it’s pretty darn useful.

It is supposed to just be for Netapp Partner and Employee use, so if you are not a PartnerPloyee, cover your eyes as you read the rest of this.

For this, you’ll need a real Terminal shell with bash and perl. Linux, OSX will “just work”. Windows users, get Cygwin. If you don’t ready use Cygwin, you need to use Cygwin.

#Step 1:
#Extract body.7z to a new folder.
# * OSX:  Use Keka or If you have brew/port install 7z (brew install p7zip)
# * Linux:  7z x body.7z
# * Windows:  I hate you.  Just kidding. You can get 7z for Cygwin too.

jk-47:tmp jkulm$ 7z x body.7z

7-Zip [64] 9.20  Copyright (c) 1999-2010 Igor Pavlov  2010-11-18
p7zip Version 9.20 (locale=utf8,Utf16=on,HugeFiles=on,8 CPUs)

Processing archive: body.7z

Extracting  SYSCONFIG-A.txt
Extracting  SYSCONFIG-R.txt
Extracting  OPTIONS.txt
Extracting  software_image.xml
Extracting  CLUSTER-INFO.xml
... TRUNCATED ... TRUNCATED ...
Extracting  FAILED-DISK-REGISTRY.txt
Extracting  FC-DEVICE-MAP.txt
Extracting  FC-LINK-STATS.txt
Extracting  FC-STATS.txt
Extracting  PRIORITY-SHOW-VOLUME.txt
Extracting  var-etc-periodic-conf.txt

Everything is Ok

Files: 255
Size:       26233937
Compressed: 1381225


#Step 2:
#Make all text type file names upper case
# (this is one of many ways):

 perl -e 'for(@ARGV){rename$_,uc}' *.txt
 perl -e 'for(@ARGV){rename$_,uc}' *.xml

# Replace underscores with DASHES

perl -e 'do { (my $f = $_) =~ tr/_/-/; rename $_, $f } for glob "@ARGV"' *.XML
perl -e 'do { (my $f = $_) =~ tr/_/-/; rename $_, $f } for glob "@ARGV"' *.TXT


#Step 3:

# Save my asupsections.txt to the directory.  (This is just
# headers and helps me call to the other files)

wget https://www.jk-47.com/wp-content/uploads/2015/06/asupsections.txt

jk-47:tmp jkulm$ wget https://www.jk-47.com/wp-content/uploads/2015/06/asupsections.txt
--2015-06-16 10:05:31--  https://www.jk-47.com/wp-content/uploads/2015/06/asupsections.txt
Resolving www.jk-47.com... 69.164.213.234
Connecting to www.jk-47.com|69.164.213.234|:80... connected.
HTTP request sent, awaiting response... 200 OK
Length: 5220 (5.1K) [text/plain]
Saving to: 'asupsections.txt'

100%[=================================================================================================&gt;] 5,220       --.-K/s   in 0.03s

2015-06-16 10:05:31 (166 KB/s) - 'asupsections.txt' saved [5220/5220]

#Step 1:

#Extract body.7z to a new folder.

# * OSX: Use Keka or If you have brew/port install 7z (brew install p7zip)

# * Linux: 7z x body.7z

# * Windows: I hate you. Just kidding. You can get 7z for Cygwin too.

jk-47:tmp jkulm$ 7z x body.7z

p7zip Version 9.20 (locale=utf8,Utf16=on,HugeFiles=on,8 CPUs)

Processing archive: body.7z

Extracting SYSCONFIG-A.txt

Extracting SYSCONFIG-R.txt

Extracting OPTIONS.txt

Extracting software_image.xml

Extracting CLUSTER-INFO.xml

... TRUNCATED ... TRUNCATED ...

Extracting FAILED-DISK-REGISTRY.txt

Extracting FC-DEVICE-MAP.txt

Extracting FC-LINK-STATS.txt

Extracting FC-STATS.txt

Extracting PRIORITY-SHOW-VOLUME.txt

Extracting var-etc-periodic-conf.txt

Everything is Ok

Files: 255

Size: 26233937

Compressed: 1381225

#Step 2:

#Make all text type file names upper case

# (this is one of many ways):

perl -e 'for(@ARGV){rename$_,uc}' *.txt

perl -e 'for(@ARGV){rename$_,uc}' *.xml

# Replace underscores with DASHES

perl -e 'do { (my $f = $_) =~ tr/_/-/; rename $_, $f } for glob "@ARGV"' *.XML

perl -e 'do { (my $f = $_) =~ tr/_/-/; rename $_, $f } for glob "@ARGV"' *.TXT

#Step 3:

# Save my asupsections.txt to the directory. (This is just

# headers and helps me call to the other files)

wget http://www.jk-47.com/wp-content/uploads/2015/06/asupsections.txt

jk-47:tmp jkulm$ wget http://www.jk-47.com/wp-content/uploads/2015/06/asupsections.txt

--2015-06-16 10:05:31-- http://www.jk-47.com/wp-content/uploads/2015/06/asupsections.txt

Resolving www.jk-47.com... 69.164.213.234

Connecting to www.jk-47.com|69.164.213.234|:80... connected.

HTTP request sent, awaiting response... 200 OK

Length: 5220 (5.1K) [text/plain]

Saving to: 'asupsections.txt'

100%[=================================================================================================>] 5,220 --.-K/s in 0.03s

2015-06-16 10:05:31 (166 KB/s) - 'asupsections.txt' saved [5220/5220]

Here is the asupsections.txt

#Step 4:
#Run this:

ASUPFILE="`grep X-Netapp-asup-hostname X-HEADER-DATA.TXT | awk '{print $2}'`_asup.txt"
echo $ASUPFILE

for i in `awk -F"===== " '{print $2}' asupsections.txt | awk -F" =====" '{print $1}'`; do echo "===== "$i" =====" >> $ASUPFILE ; cat $i.TXT >> $ASUPFILE;  done

## It'll return lots of junk. Ignore that.

##  See, this file was created.

jk-47:tmp jkulm$ ls $ASUPFILE
DR-NAPP-01_asup.txt

#Step 4:

#Run this:

ASUPFILE="`grep X-Netapp-asup-hostname X-HEADER-DATA.TXT | awk '{print $2}'`_asup.txt"

echo $ASUPFILE

for i in `awk -F"===== " '{print $2}' asupsections.txt | awk -F" =====" '{print $1}'`; do echo "===== "$i" =====" >> $ASUPFILE ; cat $i.TXT >> $ASUPFILE; done

## It'll return lots of junk. Ignore that.

## See, this file was created.

jk-47:tmp jkulm$ ls $ASUPFILE

DR-NAPP-01_asup.txt

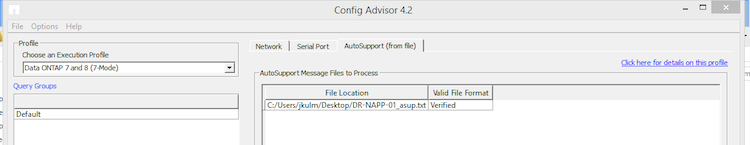

Open up Config Advisor, select 7-mode (Yes I know this is a cluster mode system…), then select “Autosupport (from File)”.
